SL19
MINI SLIDE SWITCHES UP TO 6A 120VAC
instrumental usages, panel mounting, PCB, solder lug

  • 6A 120VAC, 3A 250VAC (UL)
  • 6A 28VDC (UL)
  • Initial contact resistance : 10m ohm (max.)
  • Insulation resistance : 500VDC 100M ohm  (min)
  • Dielectric strength : 1,000VAC for 1 minute
  • Life cycle : 30,000 cycles
  • Temperature range : -20 to + 85 degrees in Celsius
  • Case : Diallyl phthalate (DAP).
  • Housing : Stainless steel.
  • Slide handle : Nylon66
  • Contact : Silver plated copper
  • gold plated optional
  • Terminals : Silver plated copper or brass
  • gold plated optional

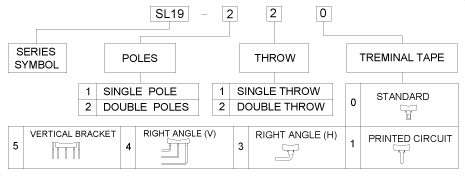

SL19-220

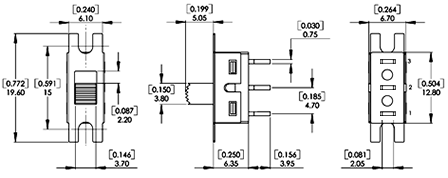

SL19-120

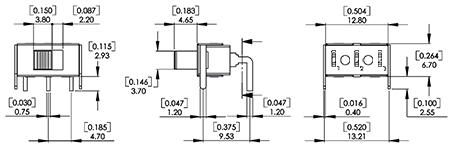

SL19-123

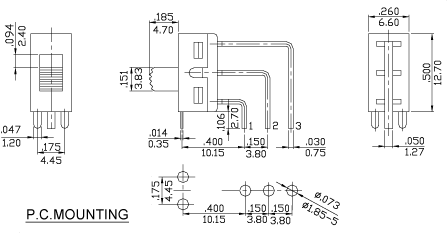

SL19-124
