SL13C SERIES
SLIDE SWITCHES UP TO 5A 125VDC Double poles-panel mounting-solder lug or PCB terminals
¡@

  • 3A 125VDC / 5A DC 125V

  • Circuit: SP2T, SP4T, DP2T, DP4T, 3P3T, 4P3T

  • Contact resistance : 20m ohm max.

  • Dielectric strength : 1,000 VAC for 1 minute.

  • Frame : Nickel plated steel

  • Actuator : Nylon 66 , UL rated 94V-2 min

  • Base : Phenolic

  • Movable contact: Silver plated copper alloy

  • Leaf spring : Copper alloy

  • Terminals : Silver plated copper alloy

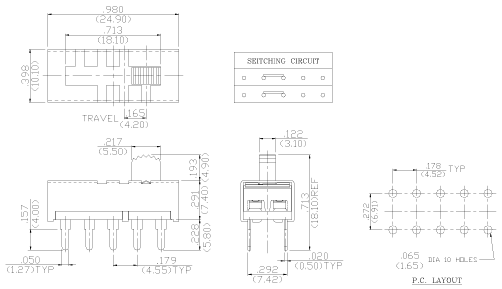

SL13C-231-1C

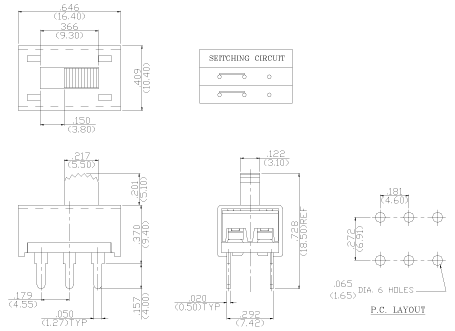

SL13C-221-1C
