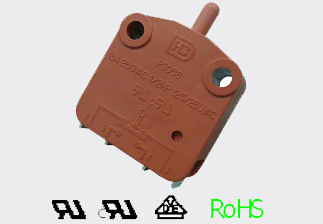

PS056 Series SWITCH ¡]ESPECIAL PUSH BUTTON Switches¡^

FEATURES:

  • Mechanical life¡Gmin.1 x 10 cycles
  • Good feeling and more actuators

Specifications

Mechaanical life¡G100,000 cycles min¡F
Contact Rating: 16Amps @ 250 VAC; CUL, UL
50,000 cycles; VDE 50,000 cycles
Insulation Resistance¡G¡Ö100M£[DC250V¡F
Withstand Voltage¡GAC250V 1 minute¡FContact Resistance¡G¡Õ50m£[¡F
Operating Temper.¡G-25¢J to140¢J¡F
Operating Force¡G200¡Ó50gf¡F100¡Ó50gf.
Hand Soldering.¡GUse a soldering iron of 30 watts¡Acontrolled at 380¢J approximately 3 seconds while applying solder¡C

DIMENSION DRAWING(mm)

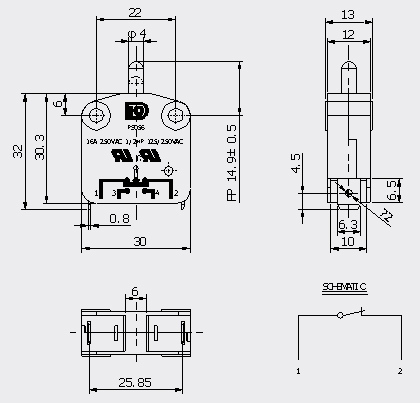

PS056-01N

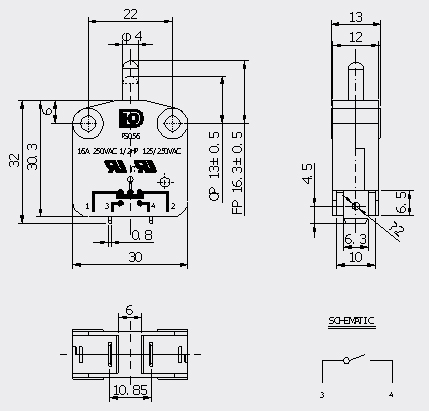

PS056-01N3

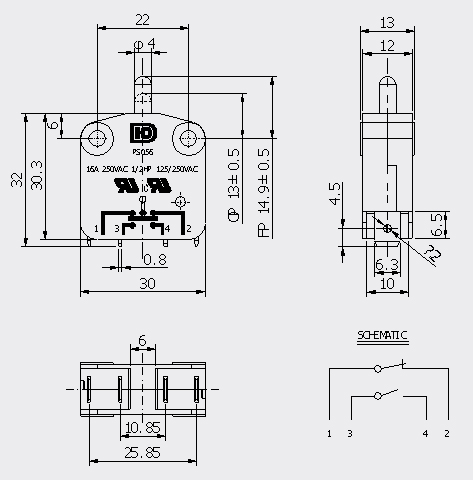

PS056-01N2
PACKING EXPLAINTION¡G

1050 PCS for one big box(75 PCS for one case,14 case for one big box.)
¡@
