SH10 SERIES
SLIDE SWITCHES AND VOLTAGE SELECTOR UP TO 2A 125VAC
Double poles, panel or PCB mounting, solder lug, terminals

  • 2A 125VAC (UL , CUL)

  • 1A 250VAC (UL , CUL)

  • Initial contact resistance: 30m£[ MAX.

  • Insulation resistance: 500VDC 100M£[ Min

  • Withstand voltage: 1,000VAC 1 minute

  • Operation: 300¡Ó100 gram.

  • Frame: Zinc plated steel

  • Actuator: PBT+15% glass fiber

  • Base: Phenolic resin

  • Terminals: Silver plated copper alloy

  • Contact: Silver plated copper alloy

  • Spring: Steel

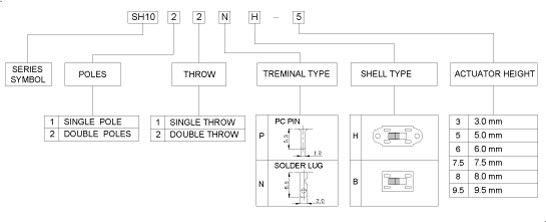

How to order

¡@
SH1022NH-5
