RS5 SERIES
ROTARY SWITCHES UP TO 130mA 150VDC/AC

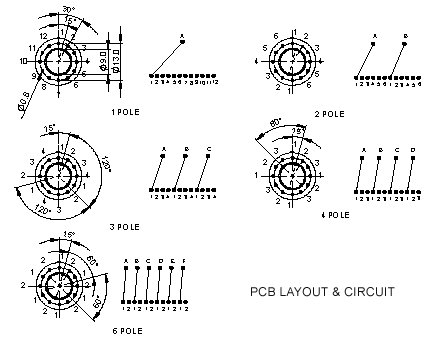

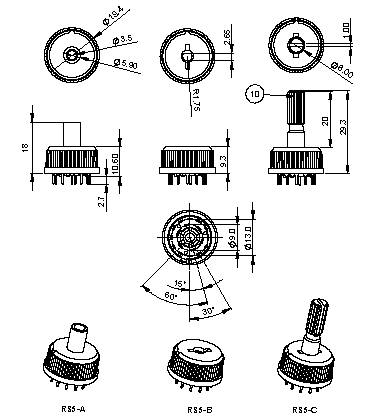

Optional actuator and PCB terminal

  • Load Rating: 130mA 150VDC/AC

  • Contact Resistance: 25 mΩ Max (initial)

  • Insulation Resistance: DC 500V 100MΩ Min.

  • Dielectric Strength: 1000VAC 1 Minute

  • Mechanical Life:  20000 cycles Min.

  • Electrical Life: 15000 cycles Min.

  • Operating Torque: 1kgf-cm (Max)

  • Operating & Storage Temperature:
    0
    ~ + 60

  • Soldering spec:255 ± 5 Within 3 sec

  • Rotary Angle: 30

  • Cap/ Case/ Movement: PA

  • Moving Contact: PBS+Ag

  • Spring: SUS

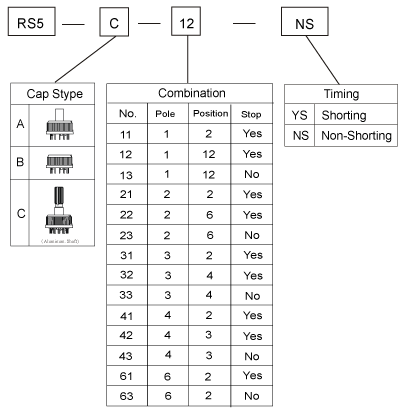

How to order:
